Industrial Labeling

LINC Systems carries automated label applicators to accommodate industrial labeling needs in multiple industries. These electric, automated labeling systems are designed to handle high production volumes and maximize uptime. They are expedient and easy to use, and they can be applied to all types of specific packaging, from standard to irregular.

Automatic labeling equipment can enhance speed capacity on your production line and reduce costs. Certain products have remote access, allowing a user to view and control the equipment from a distance.

We carry a range of automatic labeling applicators from top brands like Colamark, Markem Imaje and FoxJet.

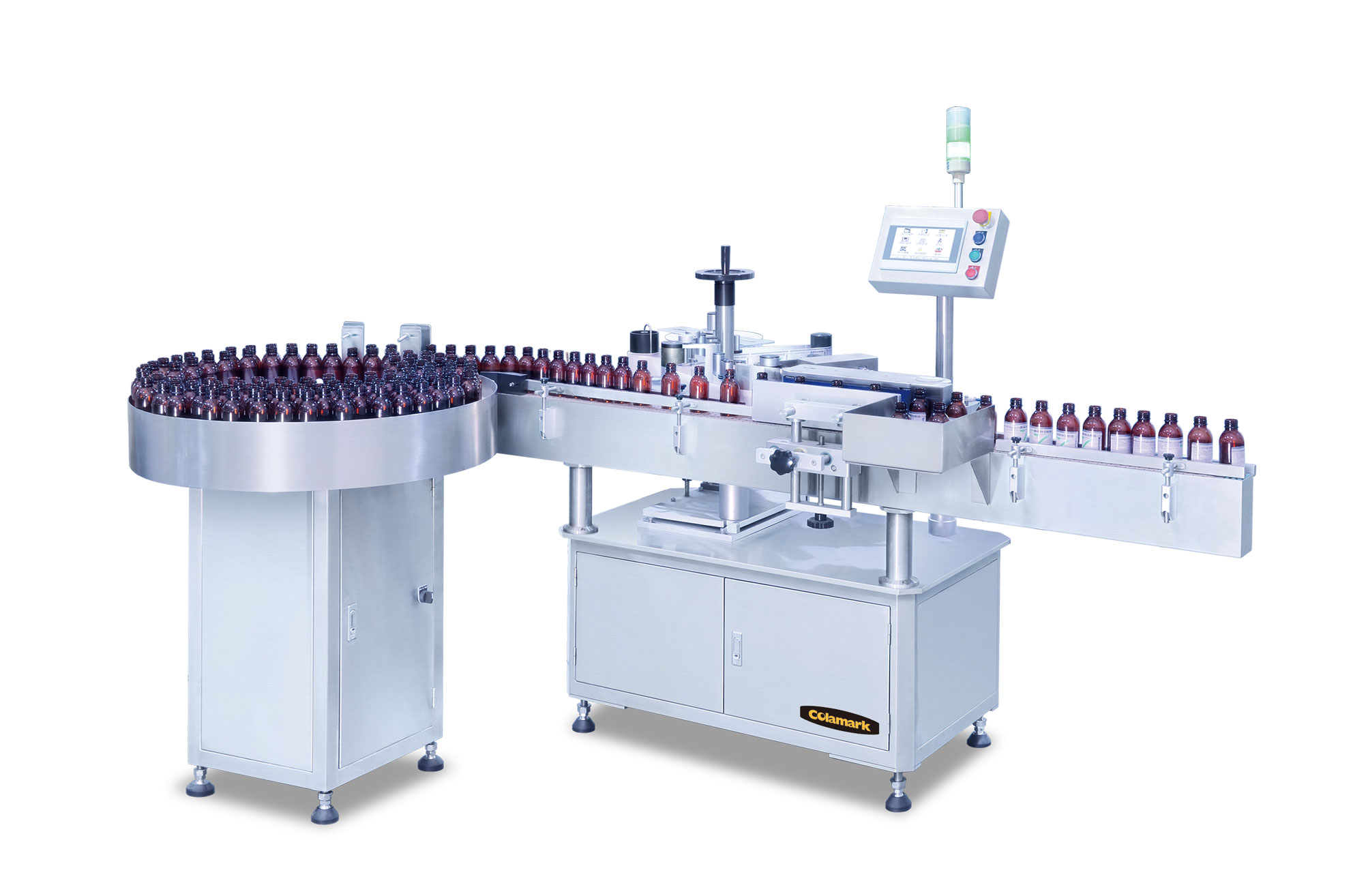

Colamark A101

The A101 Vertical Round Bottle Labeling for Pharma is a simple wrap around labeling system, specifically designed for small pharma bottles. On top of the simple and flexible concept of the wrap-around belt method, the system includes various new design features for pharma applications to achieve extra reliability, speed, precision, and ability to inspect and accurate rejection of defective products. It is a pharma grade belt wrap system for product larger than 0.6” diameter, the small pitch belt and dual post mounted labeling head provides precision label placement at products rates up to ~150bpm. An A101 is the ideal and economical choice for the pharmaceutical, foods and beverages, and daily chemicals industries for automatic labeling on round containers that can stand upright stably. Automatically detect the label size and bottle diameter and automatically determine the right parameters for fast changeover of products. Optional: hot-stamping coder, thermal transfer printer, or inkjet coder for date-coding on the labels.

Resources

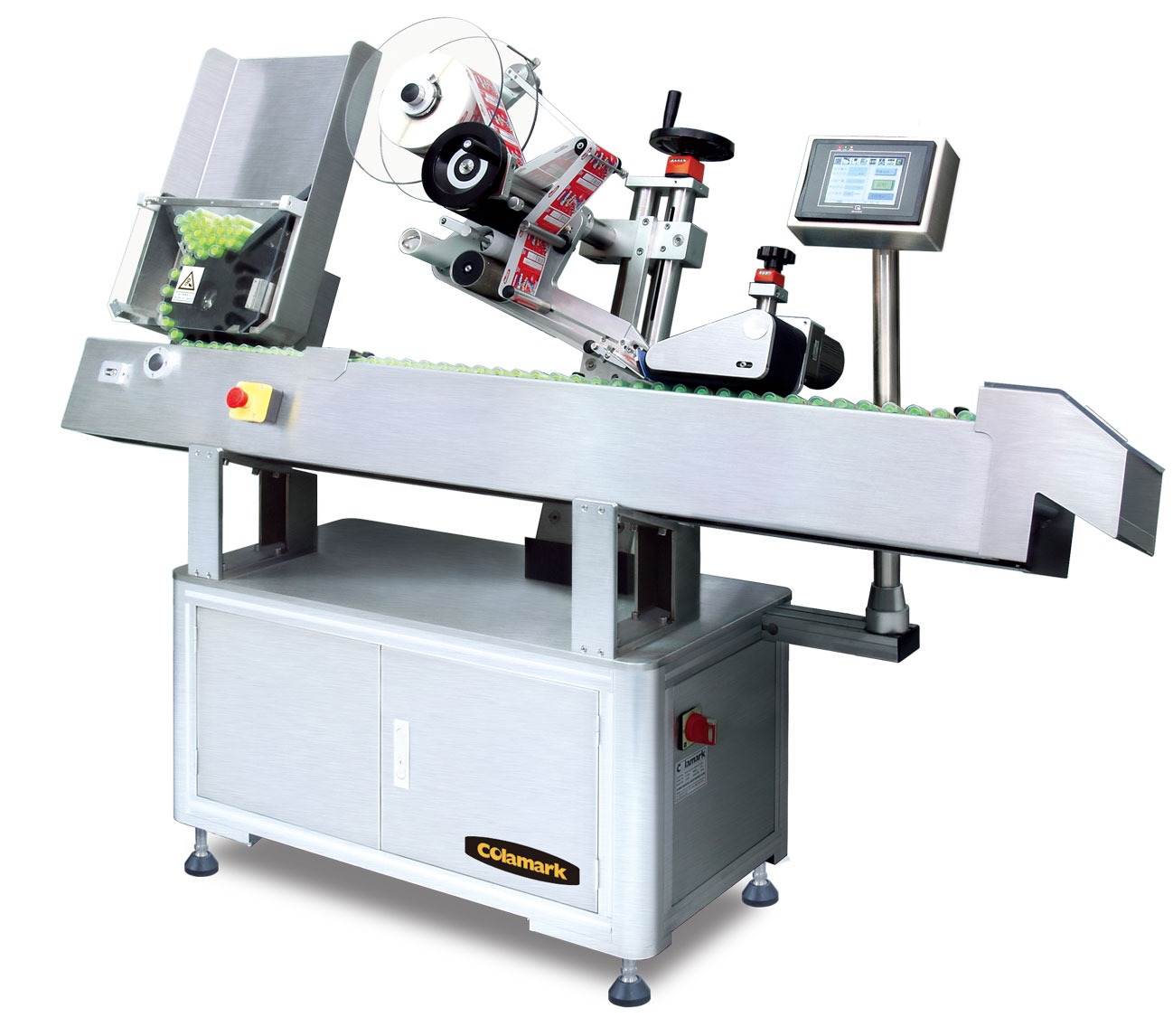

Colamark A201 & A205

The A201 Horizontal Round Bottle Labeling System is a simple wrap around labeling system, specifically designed for small pharma bottles. It has speeds up to ~200 bpm. On top of the simple and flexible concept of the wrap-around belt method, the system includes various new design features for pharma applications to achieve extra reliability, speed, precision, and ability to inspect and accurate rejection of defective products. The A205 is for horizontal labeling of small diameter tubes. The infeed and collect tables have the product vertical and the product is rotated during labeling.

Resources

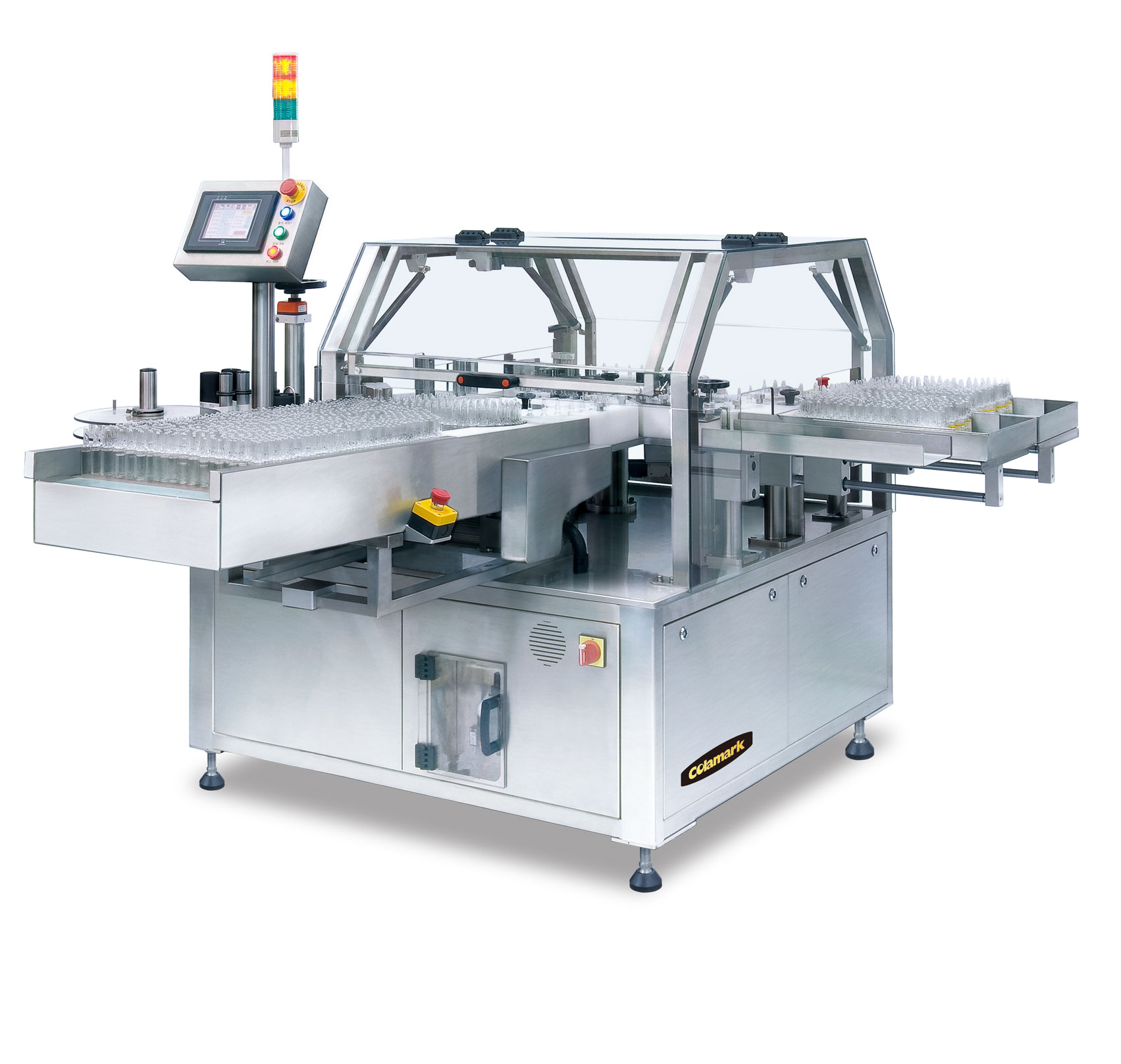

Colamark A103 & A105

The A103 is designed for high precision labeling on small pharmaceutical bottles such as vials, ampoules, and oral drink bottles. These particular bottles cannot stand stably by itself during movement. Using an indexing turn-table for bottle movement and 3-point holding method for labeling action, the system is able to control the motion of the bottles stably throughout the process and achieve high labeling precision. Unique cushioning mechanism to ensure no bottle breakage even at high speed movement. Precise product inspection at high speed and patented positive push diversion star-wheel ensures accurate rejection of defective products upon inspection. The A103 system provides precision label placement at products rates up to ~450bpm. The A105 is a high-speed offline rotary system with separate infeed, reject , and collection conveyors. This system would be tray loaded and collected. It provides precision label placement at product rates up to ~600bpm.

Resources

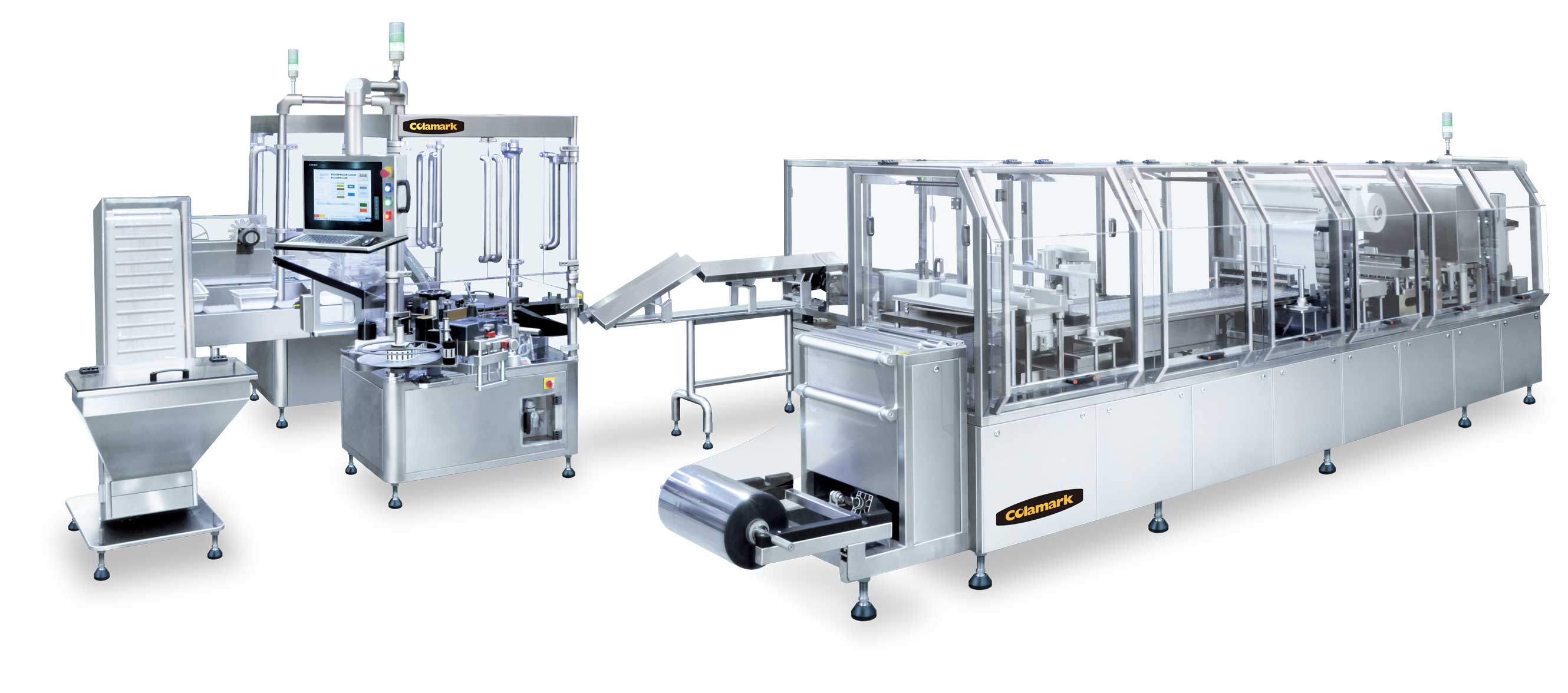

Colamark A11

The A11 System is an award winning prefilled syringe plunger-rod assembling and syringe labeling machine. It has a modular design labeling system with functions such as track and trace, label print inspection, label present check, plunger rod and needle cap in position check. The A11 can connect with a semi-automatic denester or DN1 denester for automatic syringe infeed.

Resources

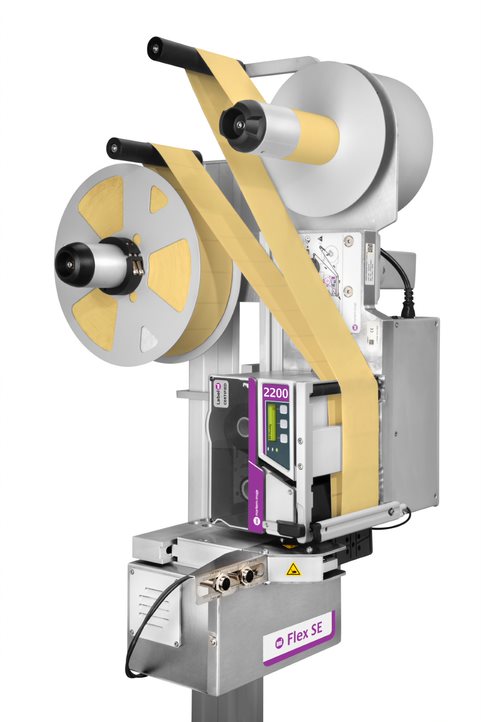

Markem Imaje 2200 Series Print and Apply Labeler

A print and apply system prints fixed and variable information onto self-adhesive labels which are then automatically placed onto outer cases, boxes or pallets in secondary and tertiary packaging. Print and apply (P&A) labeling can accommodate the widest range of materials and cases.

With a typical resolution of 300 dpi, it provides the highest and most reliable quality printing of all available technologies, giving “A” grade GS1-compliant barcodes. This is because, in P&A, the print is tightly controlled. By melting ink on a ribbon, the desired content is transferred onto the label. The label is then applied to the packaging.

Labels can be printed and applied to front, top, side, rear or over a corner.

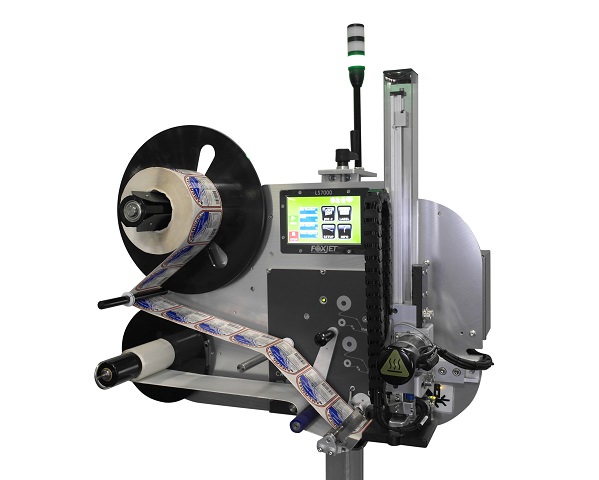

FoxJet LS7000

The all-electric FoxJet LS7000 label applicator doesn’t require any plant air. Power the entire solution through a single plug with none of the frequent interventions required to make adjustments with unreliable pneumatic labelers. Manufacturers can synchronize their entire fleet of labelers with remote access capabilities, checking status and diagnostics off the line at one location. Reliably wipe or tamp apply labels in various applications including to the side, top, bottom, front, rear and corner-wrap of product, case, and pallet panels.

KEY FEATURES:

  • Large 7" diagnostic display with responsive touchscreen capabilities
  • Prevents double feeds and mislabeled products with smart sensing technology at the peel point
  • Servo-motor label dispensing for repeatable label placement
  • Remote accessibility with controller or PC
  • Wipe or tamp apply

Resources

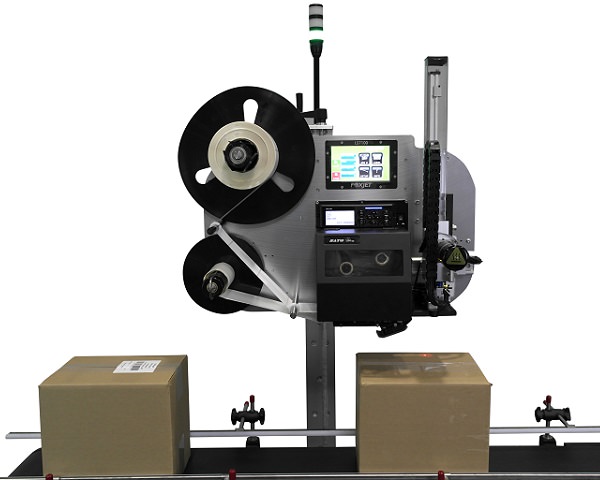

FoxJet LS7100

The FoxJet LS7100 all-electric print and apply labeler has enhanced capabilities to achieve accurate label placement at high speeds using servo-controlled label dispensing technology and intelligent auto-adjusting sensor controls. Reliably print and apply labels in flexible orientations on cases or pallets including the front, rear, side, top, bottom, and corner-wrap.

KEY FEATURES:

  • 7" intuitive color touchscreen diagnostic display
  • Smart sensors providing real time feedback for quick troubleshooting capabilities
  • Missing label sensors ensure
  • Redundant systems capabilities
  • Label dispensing driven by servo-motors for accurate label placement
  • Configurable modules in Tamp, FASA, WASA and High-Speed Tamp applications
  • Compatible with Touch Pro or handheld controller for remote access
  • Option to pair with barcode scanner for verification in your material handling

Resources
