Case Erectors/Forming



Overview



Case erector machines are the simplest way to improve efficiency and increase productivity over a human being performing the same exact job.

The average person may erect three cases (boxes) per minute, while a carton erector machine can work at 3x that speed with accuracy and precision.

Case formers don't get sick, need time off, and during a labor shortage, can be your most efficient process to replace a worker and move to another system on your line.



Benefits of Working with LINC Systems



At LINC Systems, we focus on providing superior customer service and solutions. Our goal is to offer our customers the benefit of our extensive knowledge and expertise.

We utilize the latest and greatest in technology to help us better serve our customers. This includes advanced digital tools that make working with us easy and hassle-free.



wexxarbel-caseformingequipment






Case & Tray Forming

A variety of case and tray-forming options are available to you that include both semi and fully automatic carton forming machines. LINC Systems partners with carton forming manufacturers such as Wexxar/BEL, whose systems "yield the lowest cost of ownership through greater dependability, higher productivity, maximum throughput and a high standard of safety."

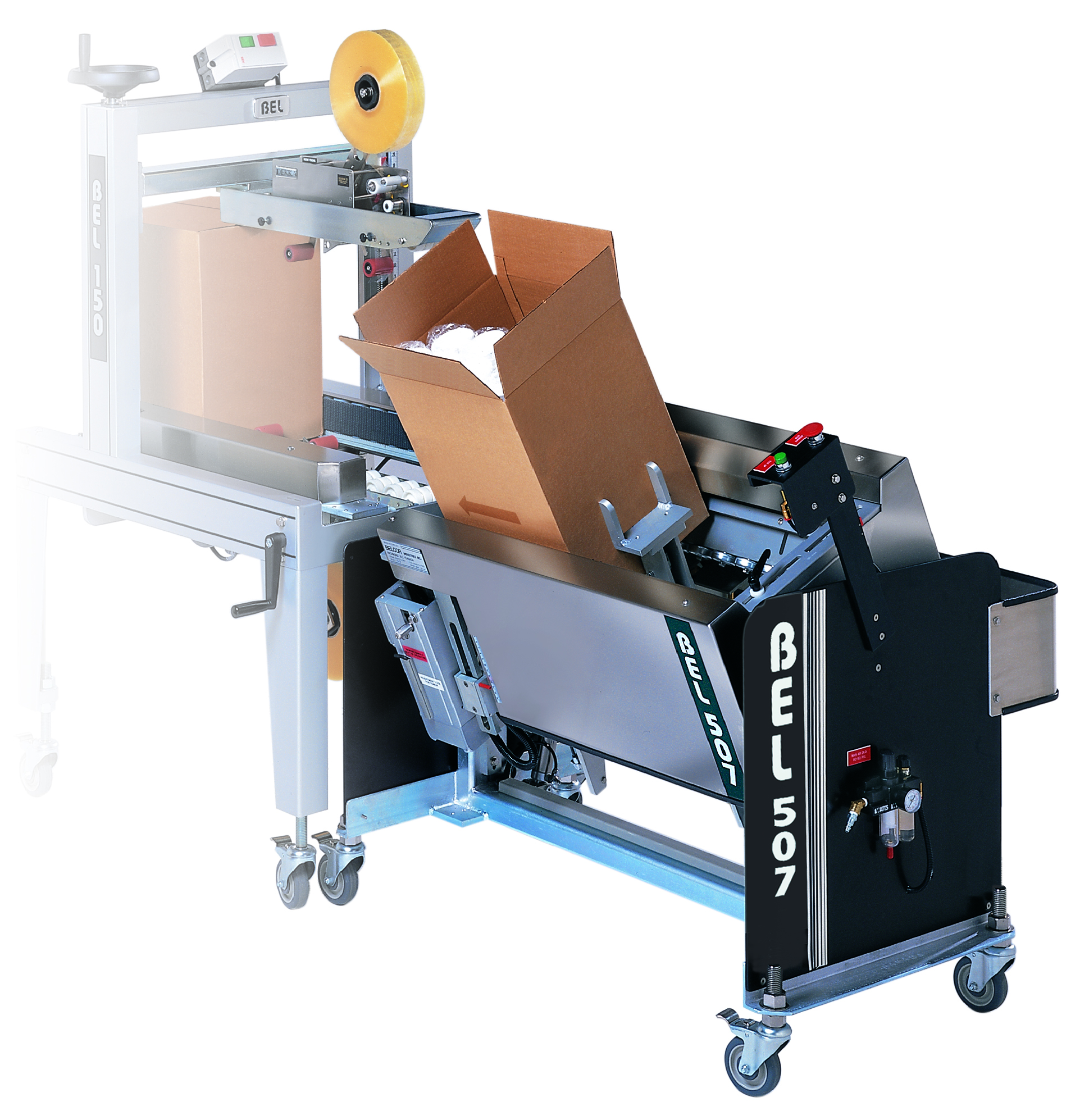

Wexxar Bel BEL 505 & BEL 507

The Wexxar Bel BEL 505 and 507 line of semi-automatic case forming machines and packing stations are compact and ergonomic packaging solutions for manual hand pack lines. When combined with a BEL case sealer, it allows one operator to form, pack and seal corrugated cases in a single operation. Its ease of maintenance and operation is also what makes this the perfect fit for low to mid-volume applications looking for an entry-level machine.

Product Specifications: Upgrades and Customizations:
  • Dynamic flap-folding system power folds all bottom flaps
  • Formed cases are positioned on a roller deck for easy loading and transfer to case sealer
  • Tilting function to provide ergonomic loading and packing
  • Positive mechanical case hold-down keeps box in place for hands-free loading
  • 3 point switch actuation protects against accidental starting
  • Modifications for undersized or oversized cases
  • Ergo Level Modification
  • Fully automate your packaging line with the BEL 150 Case Sealer, the accumulation table and KDF box stand

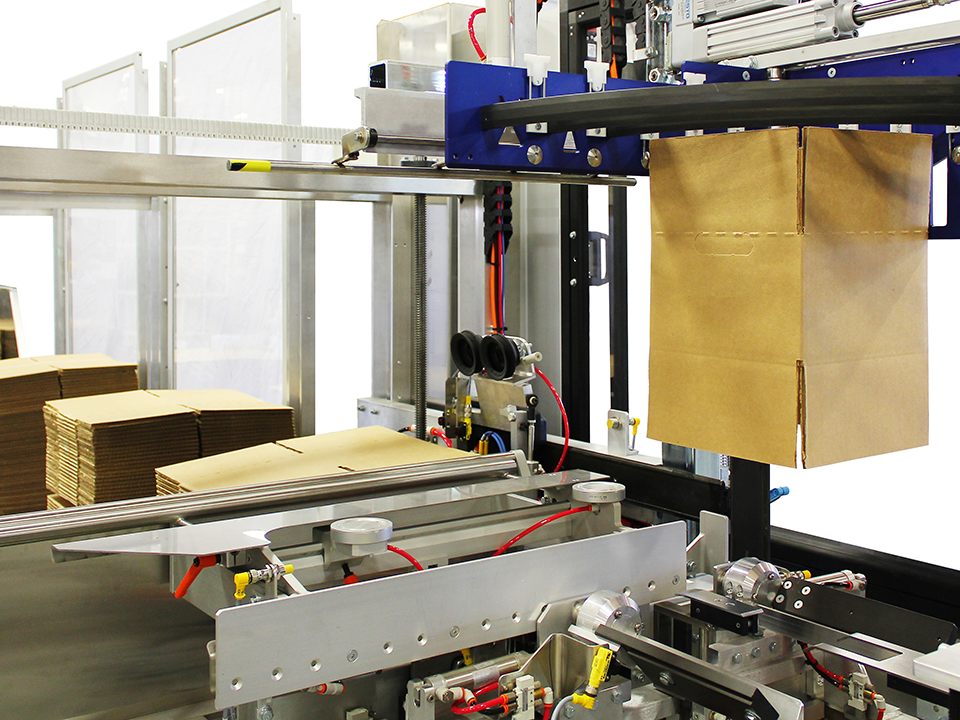

Wexxar Bel DELTA 1

The Wexxar Bel DELTA 1 is an all-new fully automatic case former that features Wexxar Bel's ultra-reliable patented Pin & Dome System. Paired with this technology is an all-new patent-pending modular ergonomic to load magazine design, a significant reduction in changeover points, larger case size range, and more.

Product Specifications: Upgrades and Customizations:
  • Up to 36 CPM (cases per minute)
  • Premium welded frame with corrosion resistant materials including anodized aluminum and stainless steel for a paint free construction
  • Available in tape or hot melt
  • HMI color touchscreen interface
  • Auto Adjust Size Changeover
  • Secondary HMI
  • Machine Management with Tri-Light Beacon
  • External Interface with Power Outlet

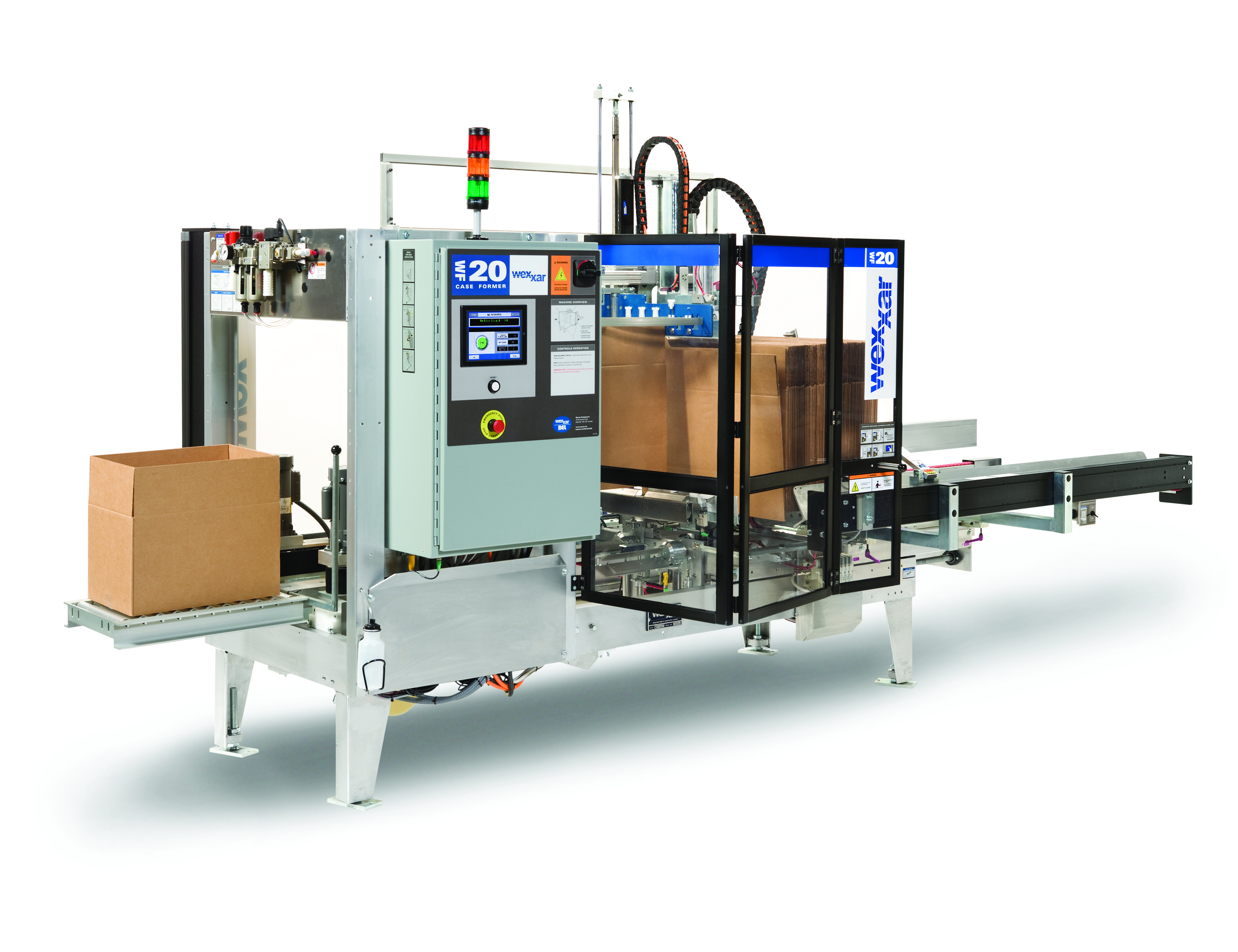

Wexxar Bel WF20T

The Wexxar Bel WF20T fully automatic case former introduces a new level of refinement and performance and raises the standards for ease of use, case forming quality, and reliability. The machine is in full control of the case at all times, using positive force for all folding functions, ensuring cases are square and easily handling common imperfections found in corrugated boxes. This makes the WF20T perfect for applications with light or recycled corrugated materials.

Product Specifications: Upgrades and Customizations:
  • Pin & Dome case opening technology for an ultra-reliable, ultra-square case opening
  • Up to 20 CPM (cases per minute)
  • User-friendly touch screen to control and monitor the machine
  • Tilt-out tape head for quick and easy tape roll changes
  • Fully interlocked guard doors allow easy and safe machine access during set-up and maintenance
  • Tool-less, color coded size changeover in under 7 minutes with user-friendly on machine pictorial guides
  • Modifications for undersized or oversized cases
  • Enviroguard washdown options available
  • Additional guarding packages
  • Gap Flap or other case style modifications
  • Custom voltages

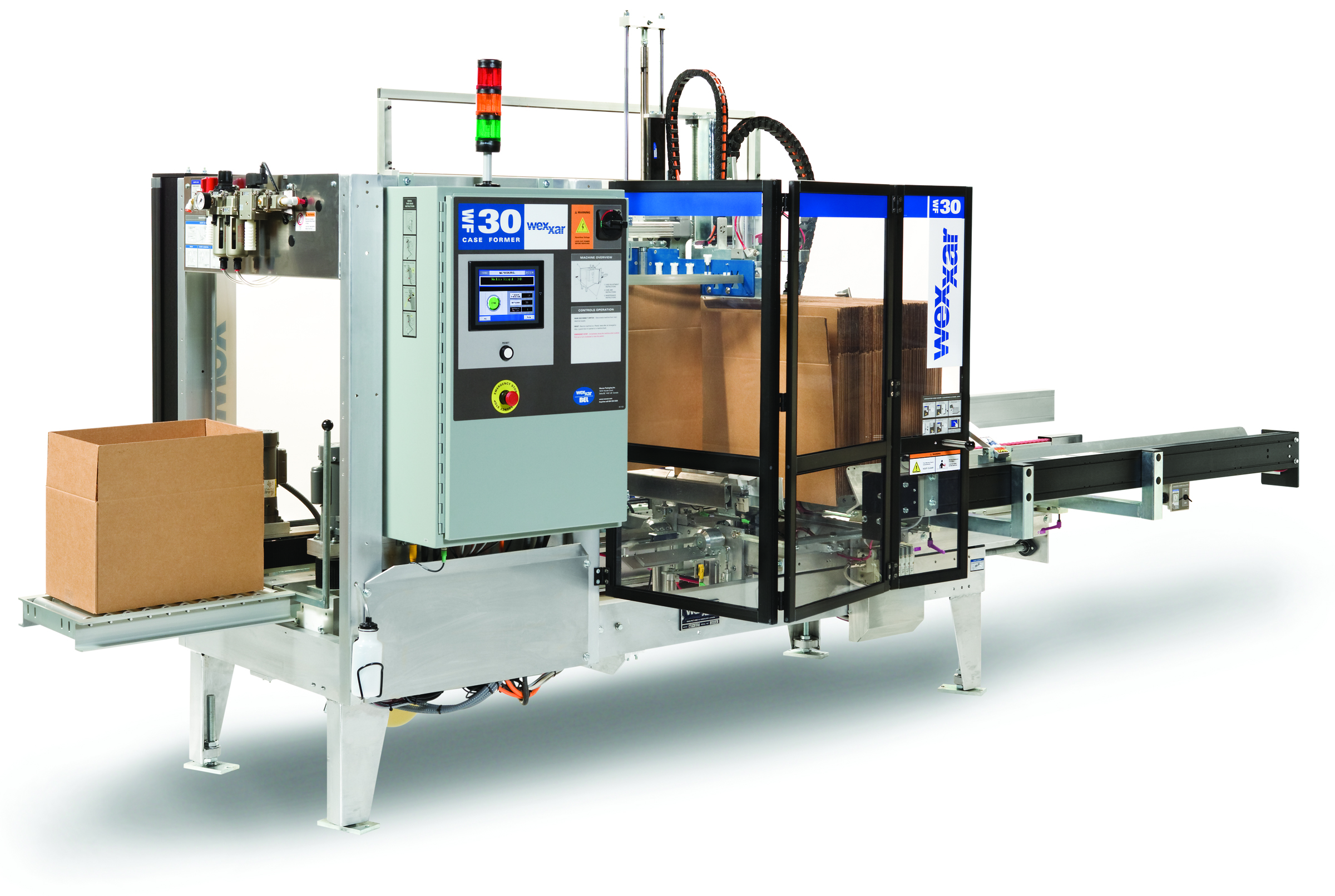

Wexxar Bel WF30T

The Wexxar Bel WF30T is a top-of-the-line, high-speed, fully automatic case former. The use of servo drive motors pushes the machine to unmatched case-forming precision, performance, and reliability levels. The machine is in complete control of the case at all times, using positive force for all folding functions, ensuring cases are square and easily handling common imperfections found in corrugated boxes.

Product Specifications: Upgrades and Customizations:
  • Pin & Dome case opening technology along with servo drive systems delivers industry leading control and reliability for high speed case forming
  • Up to 20 CPM (cases per minute)
  • Flex speed along with remote demand provides speed ranges which can be catered to each case size or style
  • User-friendly touch screen to control and monitor the machine
  • Fully interlocked guard doors for safe and easy access
  • Tilt-out tape head
  • Auto Adjust Package for automatic case size adjustment
  • Enhanced Speed Package
  • Surge Control
  • Modifications for undersized or oversized cases
  • Enviroguard washdown options
  • Gap Flap or other case style modifications
  • Custom voltages

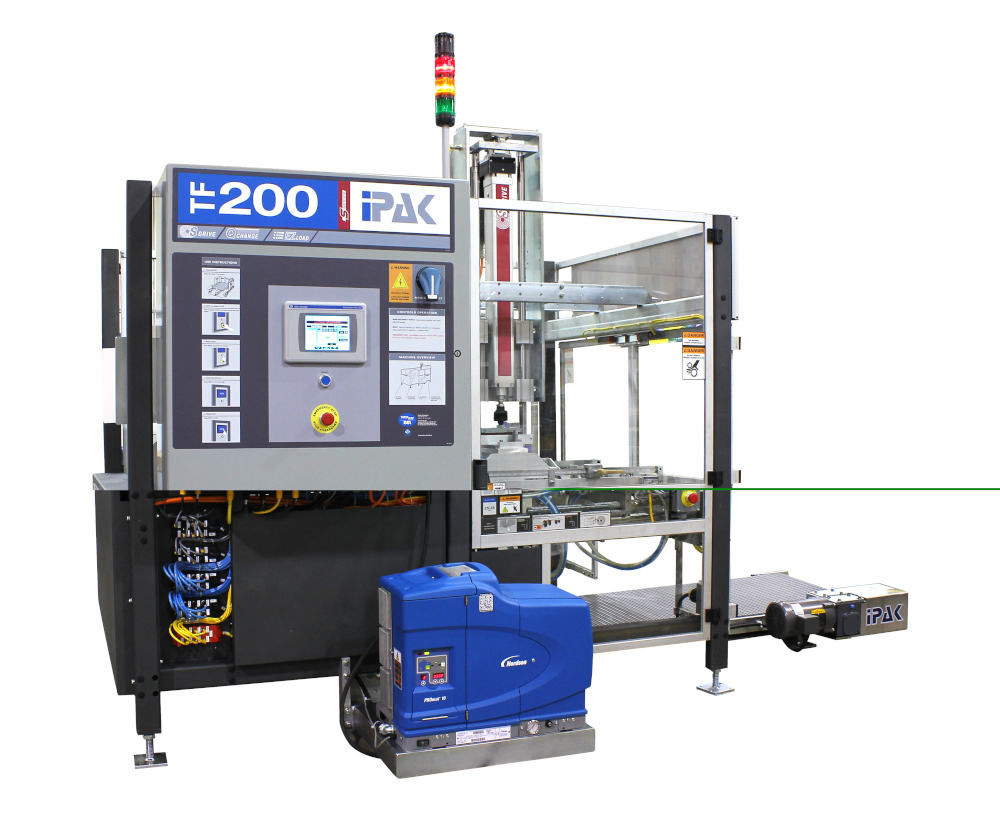

Wexxar Bel iPak 200 Series

The Wexxar Bel IPak 200 Series of fully automatic tray formers provides tray forming solutions in many industries, including agriculture, baking, food processing, and consumer goods applications. Through the use of our proprietary mandrel and compression configurations, the TF-200 forms a wide range of tray styles and sizes. Your 200 Series can be configured to meet your current and future tray forming requirements with multiple footprint configurations.

Product Specifications: Upgrades and Customizations:
  • S-Series Servo Blank Advance and Mandrel Motion
  • Right Height easy load hopper with solid hopper plates
  • Independently controlled Venturi-style vacuum picking
  • Color-Coded quick change with permanent markings
  • Remote demand controlled
  • Nordson ProBlue hot melt adhesive system
  • All controls 24 Volts DC
  • Allen-Bradley PLC
  • HMI with recipe management for size changes
  • Fully interlocked safety guarding
  • Up to 40 trays per minute
  • Retail ready rollover display ap folders
  • Dual head for high speed production
  • Left or right hand controls
  • Custom voltages
  • Modifications for under or oversize cases
  • Choice of hot melt glue systems
  • Forklift carrying tubes
  • Machine monitoring system with beacon and audible alarm
  • Motorized outfeed conveyor
  • Choice of PLC or HMI touchscreen

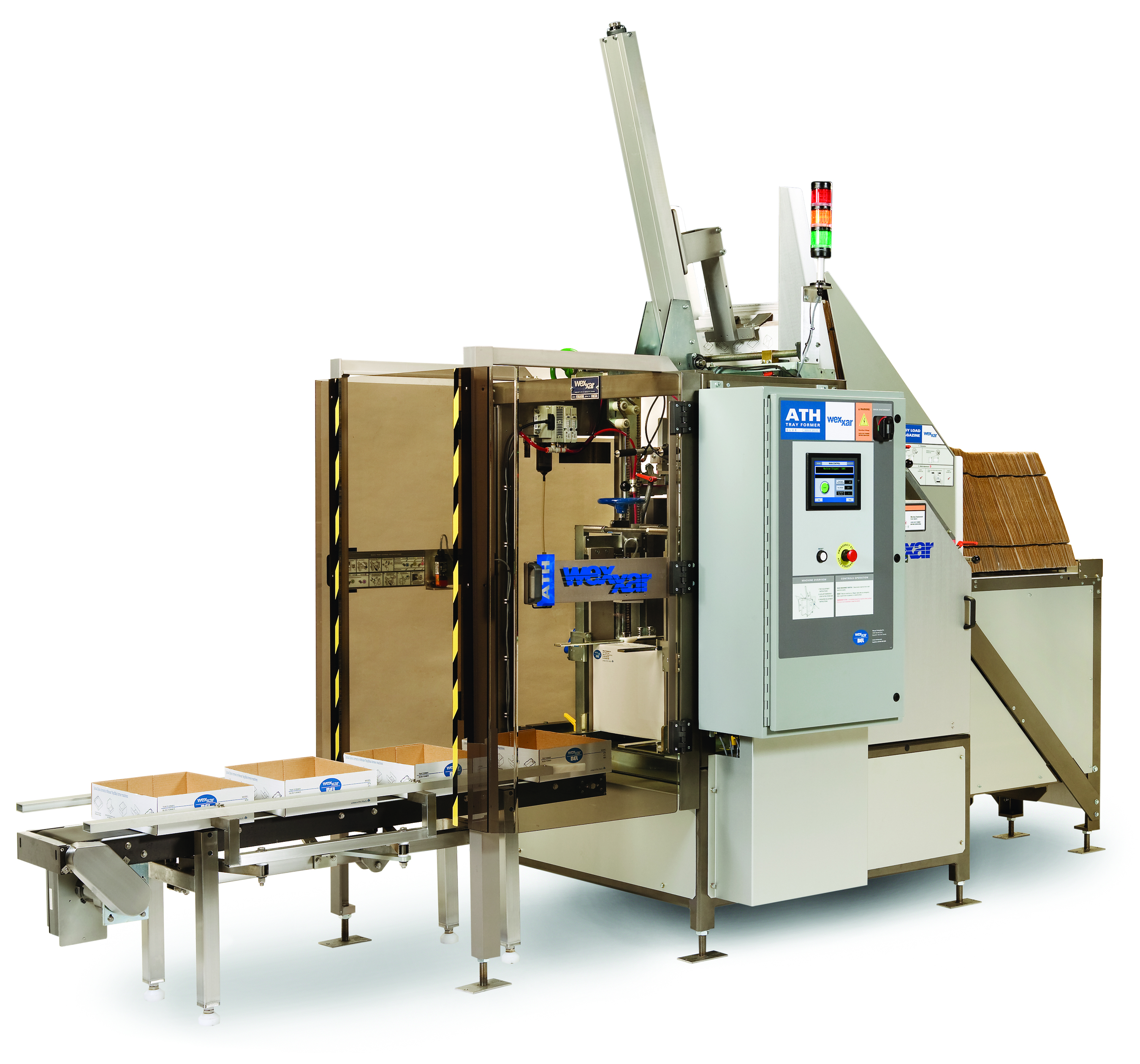

Wexxar Bel iPak ATH Series

The Wexxar Bel iPak ATH fully automatic vertical tray formers are heavy-duty machines built for around-the-clock operation. The vertical design also provides a relatively compact footprint, perfect for operations with limited floor space. The ATH is fully loaded with advanced servo technology for fast and accurate tray forming, color HMI touchscreen, and premium build materials.

Product Specifications: Upgrades and Customizations:
  • Self-cleaning Venturi style vacuum picking
  • Color-Coded quick change with scribed parts
  • Nordson ProBlue hot melt adhesive system
  • Allen-Bradley PLC
  • Fully interlocked safety guarding
  • Up to 45 trays per minute
  • Quick Change Package
  • 8’ Motor driven out-feed conveyor
  • Machine monitoring system
  • EZ- load machine
  • Auxiliary control system
  • External Ethernet and power port on electrical panel
  • Caster kit
  • 4” powered feed magazine

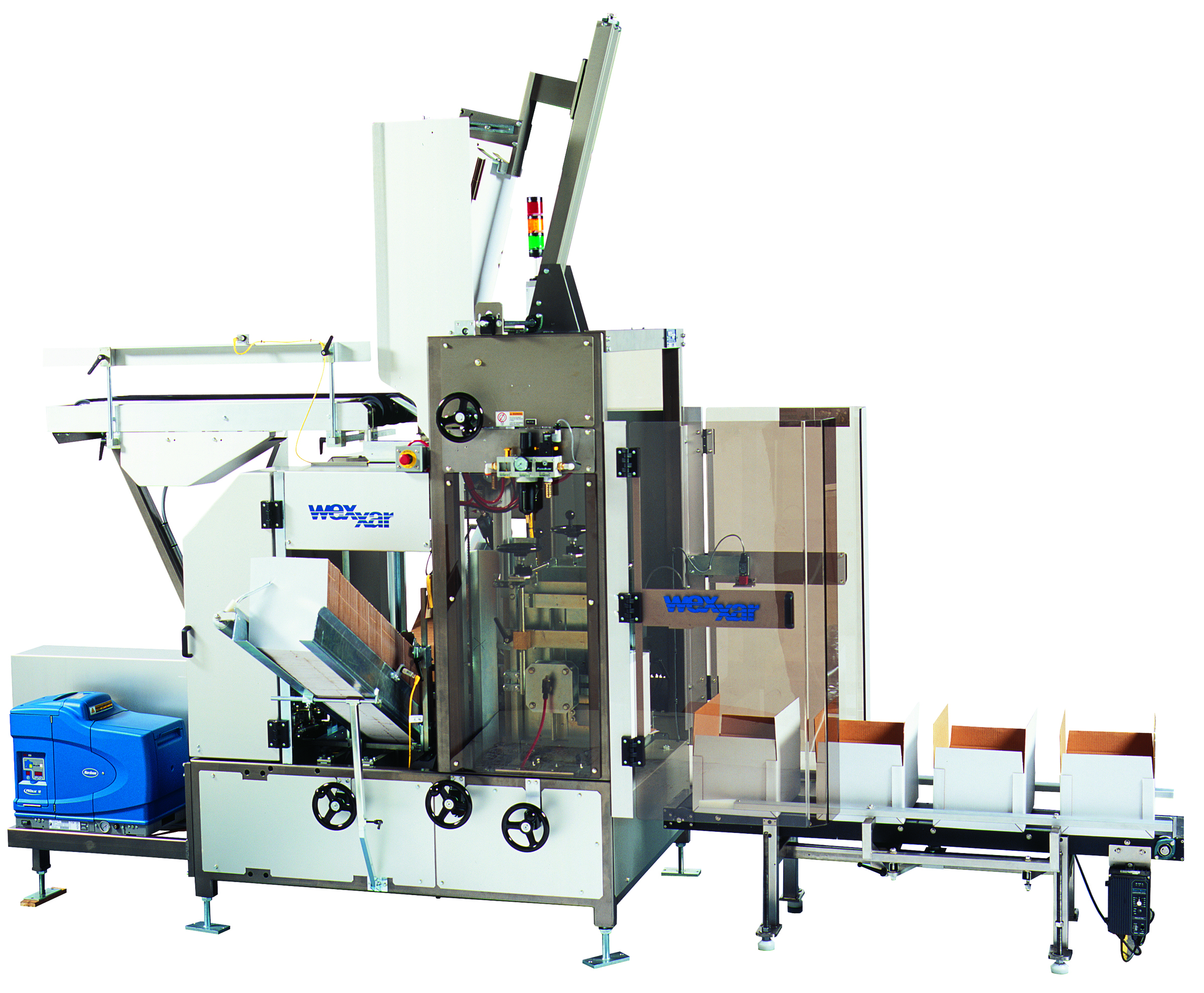

Wexxar Bel ABH Series

The Wexxar Bel ABH Automatic Bliss Former represents an industry-standard in quality, performance, and safety. The ABH universally forms many types of bliss boxes, balancing maximum vertical stacking strength with economical use of corrugated. The ABH varies speed and adapts itself to the box being formed, easily meeting the needs of more complicated box designs.

Product Specifications: Upgrades and Customizations:
  • Case Connect - custom variable speeds and glue pattern presets for different tray sizes
  • Servo Motion Control
  • Size change in 30 minutes or less with “Quick Changeover” feature
  • Interlocked guarding and ergonomic magazine loading
  • State of the art control panel
  • 40 CPM (cases per minute)
  • BEL 270 Glue Sealer
  • WSH Glue Sealer

We offer the highest-quality brands of industrial packaging equipment, including but not limited to:



If you’d like to learn more please fill out the form below or give us a call at 800.252.5894.
